Technical Specifications

• Size: 1” (DN25) – 3” (DN80)

• Working Pressure: Up to 25 bar

• Test Pressure: Working pressure +50%

• Material: Stainless steel, Hastelloy

• Seal: FKM, EPDM, FFKM

• End Connections: BSP thread / PN25/40 / ANSI 150/300 flange

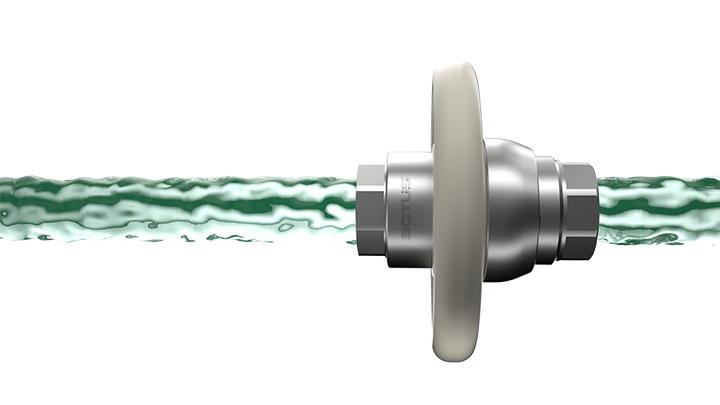

Optimized Flow Design – Lower pressure drop, higher flow rate
Excellent Vibration and High-Pressure Resistance – Ensuring stable operation
Suitable for Demanding Industrial Conditions – Designed for long-term use
Zero Leakage, Zero Contamination – Flat face design prevents air ingress and eliminates media spillage during disconnection
Two-Way Sealing Throughout – Protecting operators and the working environment
Avoids Resource Waste and Environmental Risks

Simple Operation – Fast and Safe

• Push and turn – connect or disconnect in just 2 seconds

• 110° clockwise rotation – valves open simultaneously

• Counterclockwise rotation – spring-actuated instantaneous valve closure

• Bayonet locking and end-position locking – preventing incorrect operation

Easy to Clean, Low Maintenance

• No moving parts in the flow path – pressure loss below industry standards

• Complete separation of mechanical components from media – preventing contamination

• Quick cleaning and inspection

Safety Assurance – Multi-Level Protection

• Valve opening/closing interlocked with coupler status – ensuring safety

• Robust structure with selected stainless steel – longer service life

• Reliable even under pressure and vibration

Wide Range of Applications – Cross-Industry Coverage

• Petrochemicals – such as toluene, ethylene oxide, acrylic acid, electrolytes

• Pharmaceuticals, fine chemicals, nuclear power, and other high-risk media scenarios

• Compatibility: Interchangeable with similar products from MannTek and Stäubli

Why Choose DCT?

• Save Time – Operate directly without draining

• No Economic Loss – Zero leakage throughout the entire process

• Zero Contamination – Protecting the environment and personnel safety

• High Reliability – Reasonable design, robust structure

• Long Service Life – Excellent materials, minimal wear

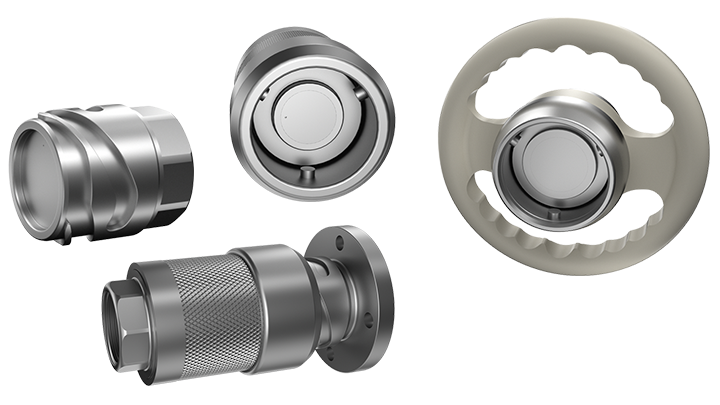

DCT Dry Quick Coupler

More than just an industrial connector – it is a reliable partner ensuring safe production, improving operational efficiency, and supporting environmental compliance.
